Build Geelong

A multihull that fits in your garage. Narrow enough to walk along the footpath.

Built from inexpensive materials, most available from your local home depot.

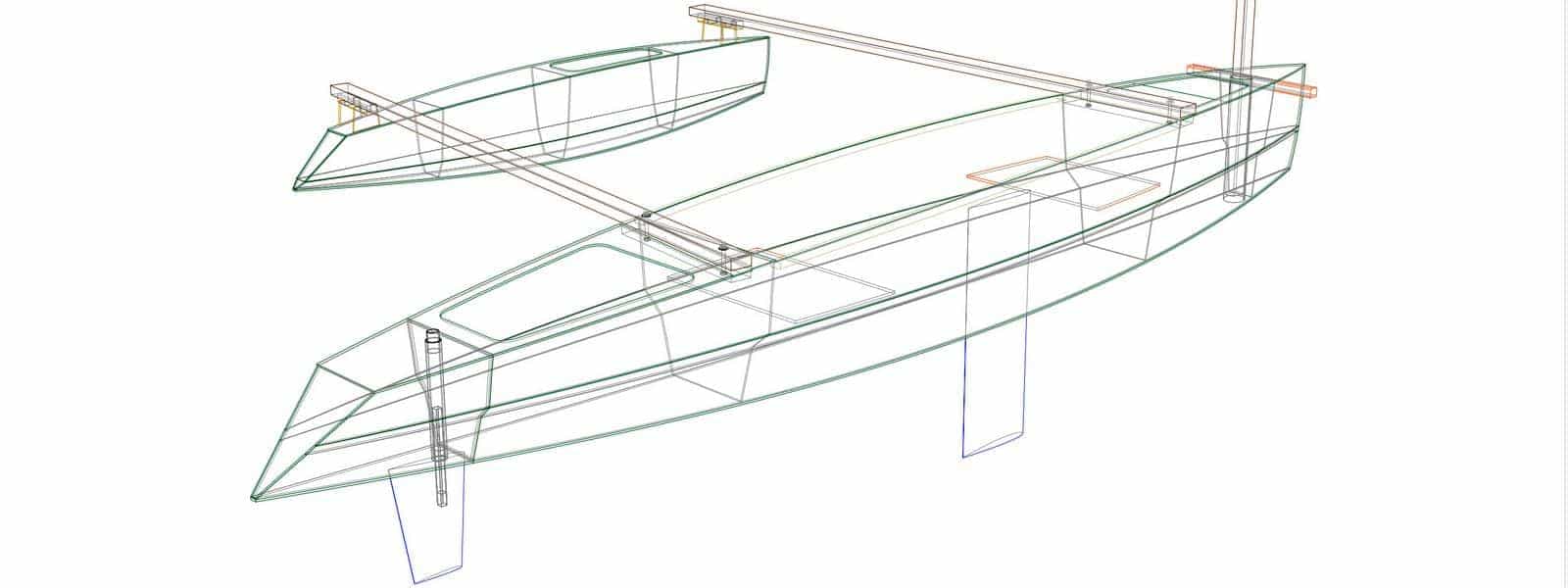

Specifications - Geelong
  • Length = 4.7m (15.4ft)
  • Beam (hull) = 700mm (28in)
  • Beam (assembled) = 2.6m (8.5ft)
  • Free-board (max) = 550mm (22in)
  • Weight (MT) = 60 kg (132lbs)   (including pontoon, mast, sail and x-beams)
  • Draft @ design waterline = 210mm (8.2in)
  • Weight (loaded) @ design waterline  = 235kg (518lbs)
  • Being a sailing boat, no registration, licence, loading data or floatation required (check your local regs)
  • Well suited for use with a small electric motor

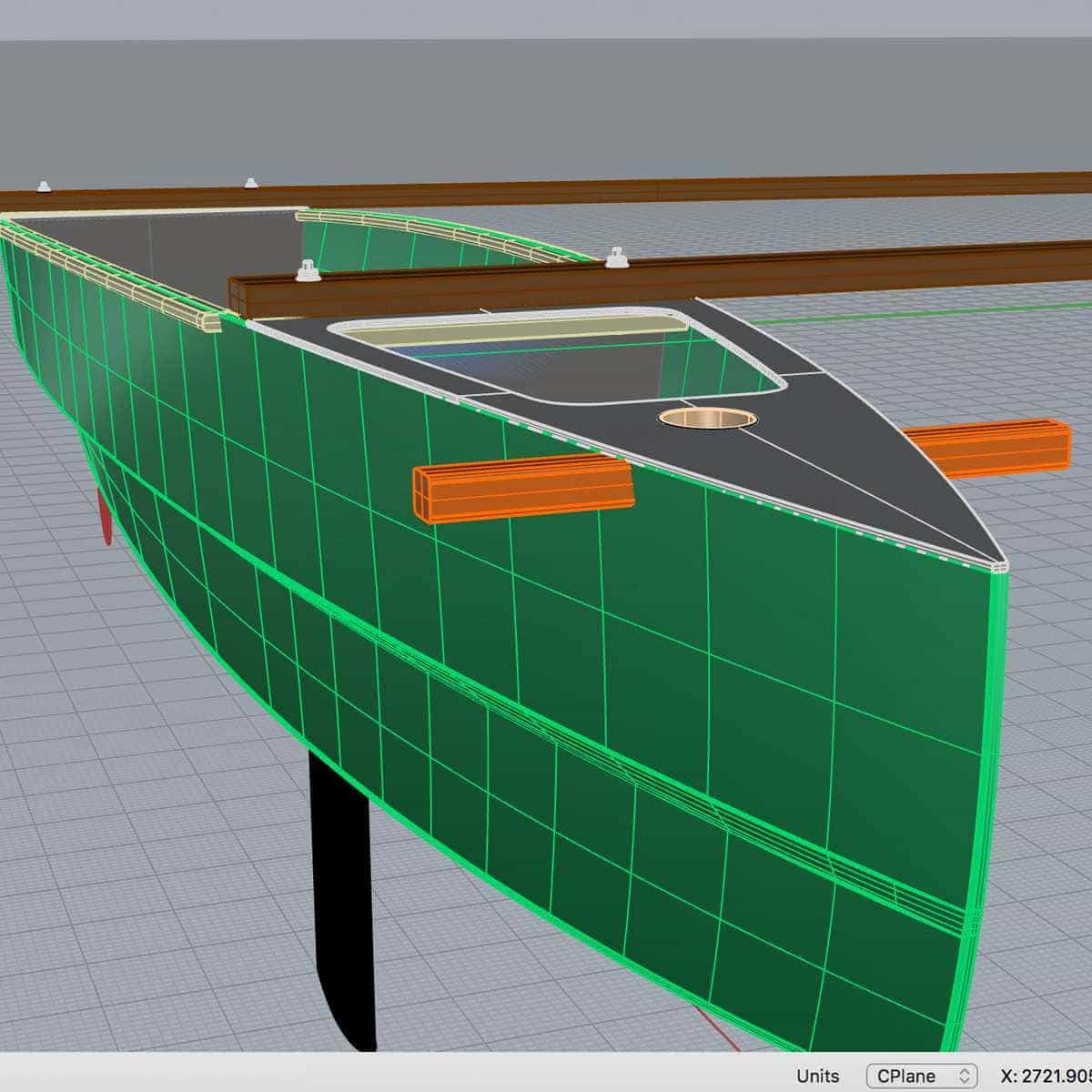

Full Plans – Geelong

$44.00

Download the plans to build “Geelong” and get started building this sailing multihull you can walk to the water. With inexpensive materials and some simple tools, you have everything you need to start making this attractive small craft at home. Price is in USD.
The plans are 7 PDF files, which include 49 pages of detailed technical drawings and written information to assist you in building this boat.
All drawings are vector PDFs. Zoom in without losing detail, to work directly from a tablet, laptop or phone. Or, print everything at home on regular A4 paper, to work from more easily. Being a sailing craft, no loading data is required.
This download includes:-
  • 1- Welcome PDF  3-pages
  • 2- Boat specifications  1-page
  • 3- Materials lists  4-pages
  • 4- Elevation drawings  7-pages
  • 5- Template drawings  20-pages
  • 6- Rudder drawings  8-pages
  • 7- Daggerboard and case drawings  6-pages
I design this package to help builders with no experience, to create their own sports boat at home and have fun doing it.
The full plans include detail drawings, material lists, guidance on safety gear, epoxy, mixing ratios and fillers. For more help, grab the new 2nd edition book — “Wooden Boat Building”, it’s a great companion to help you build this boat.

Full Plans Geelong + CNC files

$69.00

For large CNC machines (1200mm x 2400mm cutting size)

If you have access to a CNC machine, you no longer need to scarf the plywood beforehand and no marking out either. Cut all the plywood parts of the boat quickly and precisely. Price is in USD.

The files in this product are for cutting using a large machine that can handle full plywood sheets – 1200mm x 2400mm (4ft x 8ft).

This download includes everything in the full plans + the dxf files and file layout drawings:-

  • 1-Welcome PDF – 3-pages
  • 2-Boat specifications 1-page
  • 3-Materials lists – 4-pages
  • 4-Elevation drawings – 7 pages
  • 5-Template drawings – 20 pages
  • 6-Rudder drawings – 8 pages
  • 7-Daggerboard and case drawings – 6 pages
  • 8- CNC Layout Drawings
  • 9- Geelong – dxf files (7)

Download file – 8, is a zip file with seven (7) dxf files. Each file contains the hull parts, nested in a rectangle the size of a 1200 x 2400 plywood panel ready for cutting.

Download file – 9, is a 9-page PDF with drawings for the layouts of the hull parts on each of the dxf files. It also includes an alignment drawing, to check the shape and alignment of the finger-jointed panels, before bonding.

How to purchase Plans

PayPal

For Full Plans, follow this Link to purchase with PayPal – $44.

For Full Plans + CNC, follow this Link to purchase with PayPal – $69.

Please include in the message
– which plans you want

Direct payment – (Transferwise)

Save $3.00 off the above prices by paying direct.

Send an email with:-
– name of plans
– your country

to info@timwestonboats.com

You will receive a reply with the local bank account details for direct payment (normally free of charges), in your country.

Transfers usually take from 1 – 24 hrs

Plans for all methods of payment will be sent as soon as payment is received to the email used for payment – guaranteed. By purchasing plans, you agree to the Terms and Conditions on this website.

If you have any questions, contact me at info@timwestonboats.com.



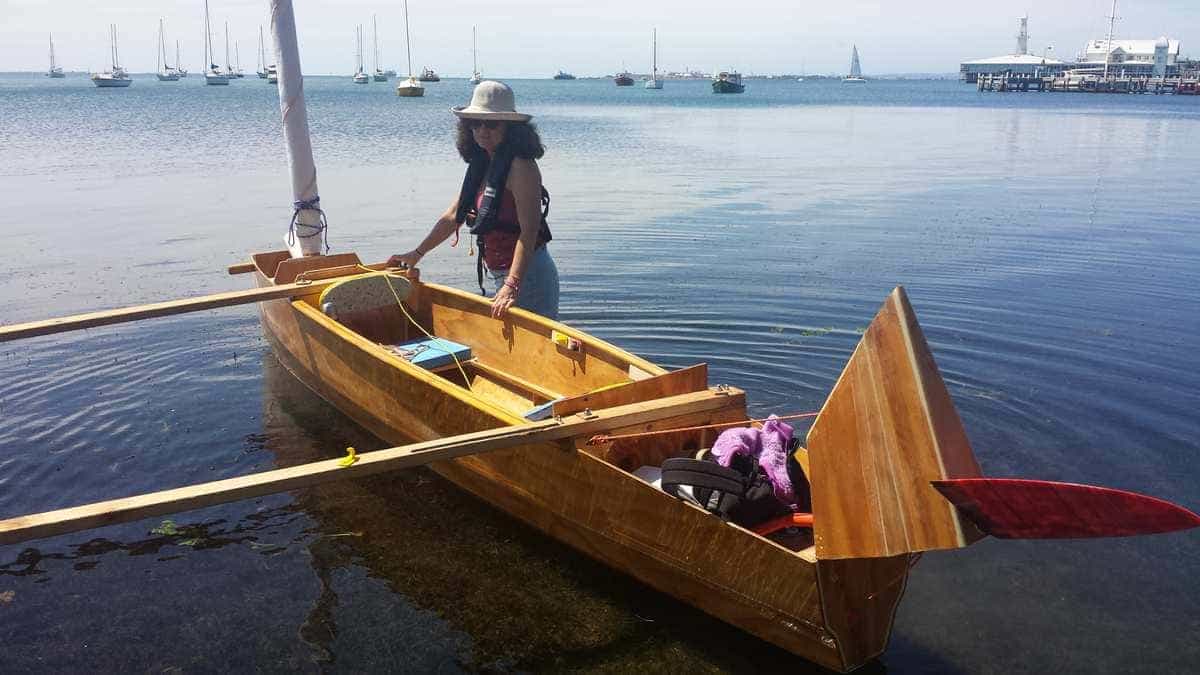

Plenty of room to stretch out

for 2 people there is ample room for you and all your gear. High free-board handles choppy water well, even at the rear with lower free-board, things remain dry.

She is easily driven and with just a few strokes of the paddle will coast for 100s of metres in still conditions. And, with the slightest of breeze, you can pack away the paddles.

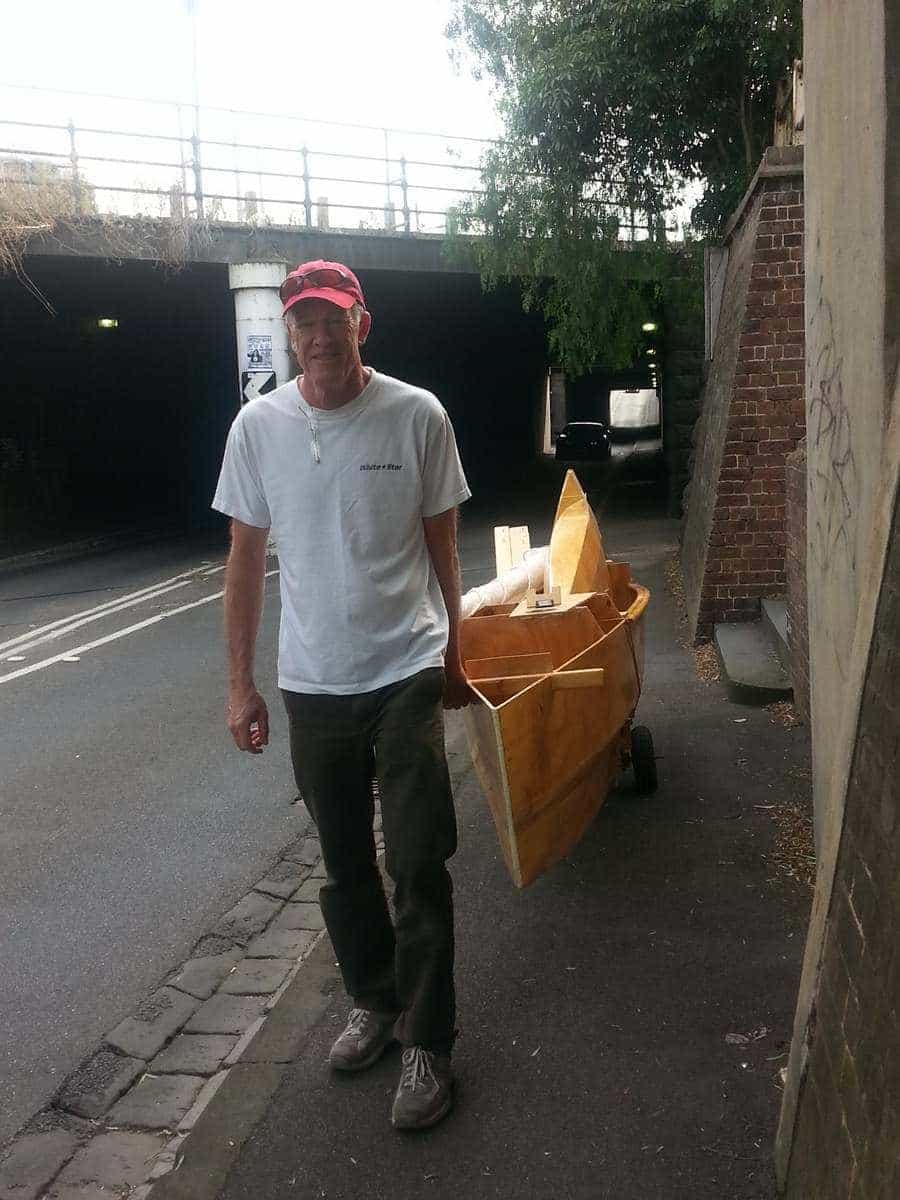

Walking to the water turns heads. You will meet more people than walking your dog.

Rig and Propulsion

Plans include template and elevation drawings for the hull, outrigger, rudder, daggerboard and casing, material list for the major parts and specifications. The suggested rig is a cat rig, as in the photos but you can rig her in different ways, such as gaff-rigged if you prefer.

An electric drive or small outboard motor are also ways to power this boat. An electric drive makes for a great fishing boat, quiet and plenty of room to stretch out inside. Her low resistance in the water means your batteries will take you a long way, and if they die, she is easy to paddle home.

If you build this boat with the idea of using an electric drive, you can save on making a rudder, mast, sails and daggerboard, (although the daggerboard helps when there is wind), you can steer with the motor instead. CNC files are available for building Geelong.

Other boat builds

Here are some photos and video from Ralf, in Cyprus.

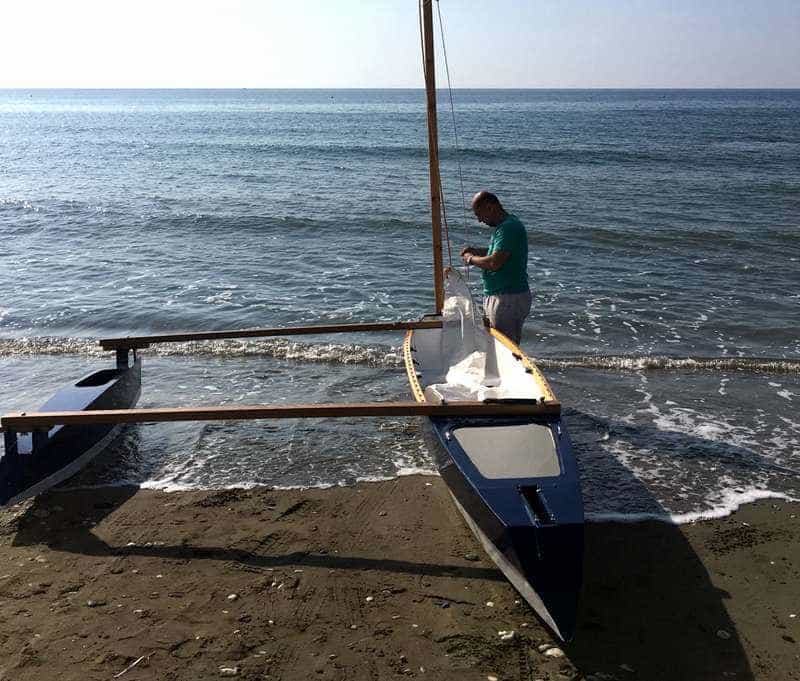

Ralf built a makeshift extension to his house under tarps to give himself room to build, not just one, but two boats. Starting with a Tewantin, and then a Geelong, which you can see here being launched.
